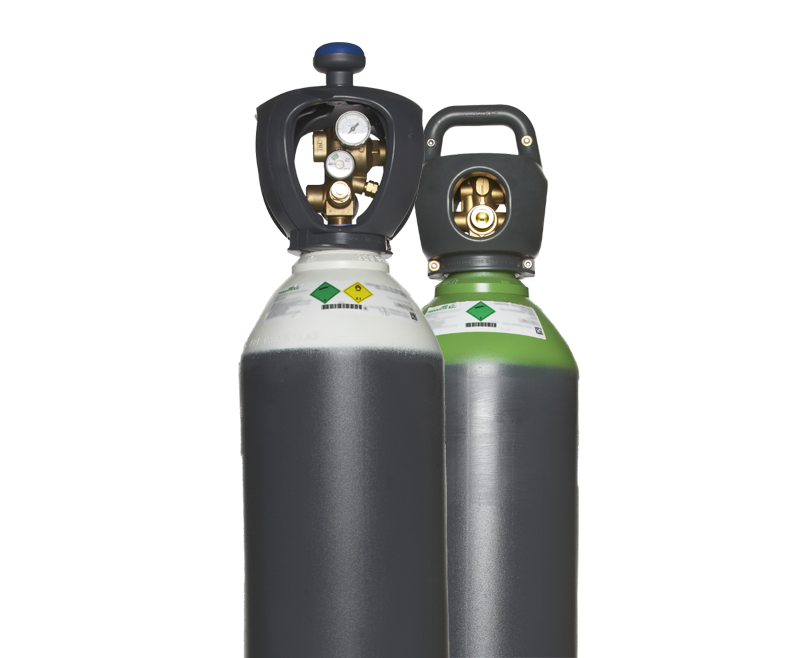

Integra® Cylinders
Smaller, safer,
lighter, quicker.
Developed for the production and safety demands of the metal fabrication industry. The Integra® cylinder may be compact, but the benefits are significant.
Buy now Book Your Free Demo
Cost saving
With a built-in regulator there is no need to buy, repair or calibrate a regulator again. Gas flowrate is consistently controlled with the Integra® Flow Optimiser (IFO) ensuring excess gas usage and costs are avoided.
Time saving
Quicker changeover times are possible due to the click on connecting IFO and integrated regulator while the active contents gauge means you never run out of gas mid-weld. Filled at 300 bar, Integra® Cylinders can also last longer than traditional cylinders filled at 200 bar.
Improved safety
The Integra® Cylinder has features built-in to minimise risks associated with handling cylinder, it is lighter than traditional cylinders, more stable due to its lower centre of gravity and the oxygen and acetylene cylinders cannot be operated without flashback arrestors.
Easier handling
Shorter and lighter than traditional cylinders, the Integra® Cylinder is easier and safer to manoeuvre. The welding gas cylinder is fitted with an integrated handle and the cutting cylinders with a rolling knob for ease of handling.
Work better, weld better with Integra® Cylinder

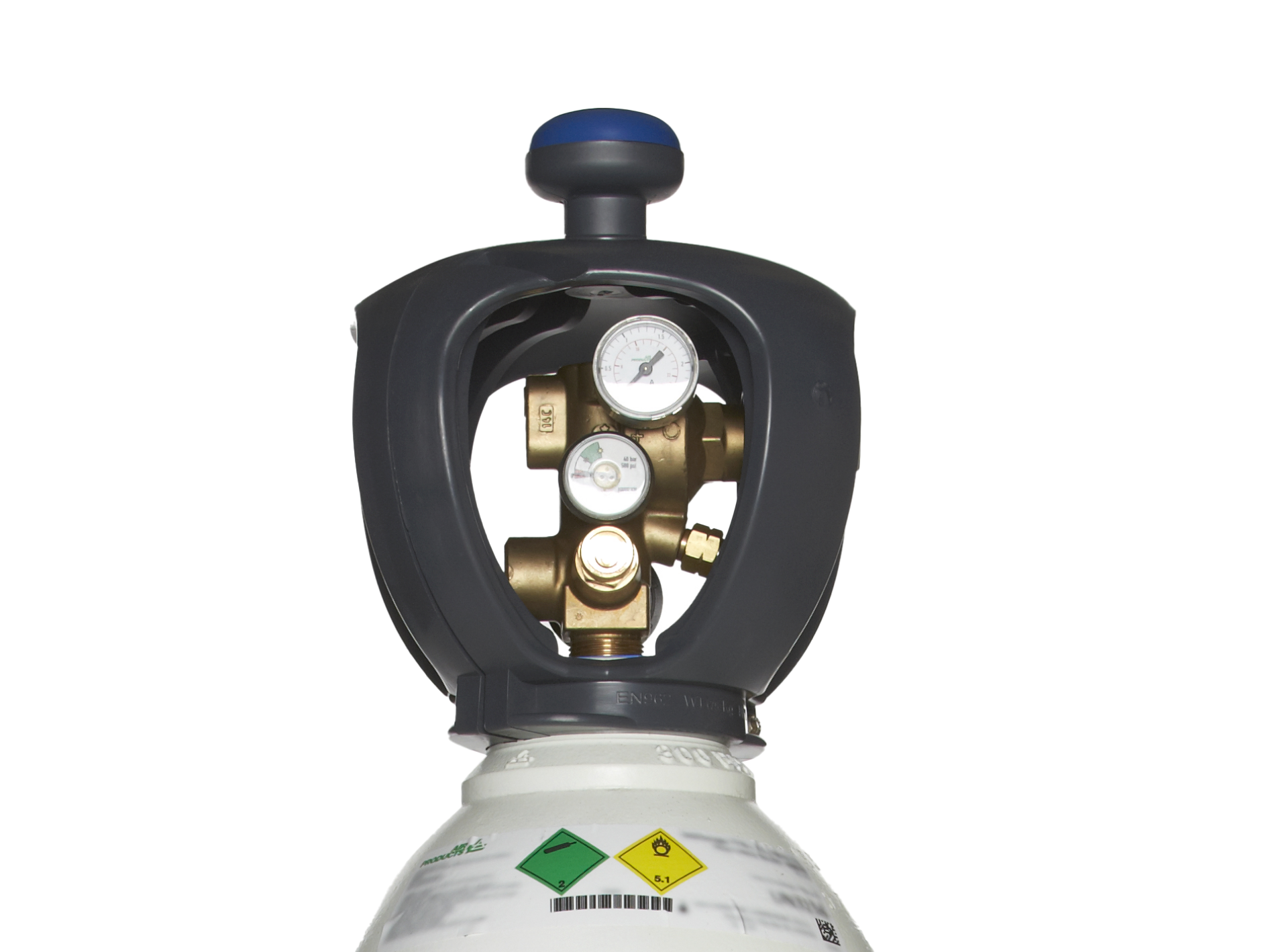

Built-in regulator
Free up time spent attaching regulators. The integrated regulator and Integra® Flow Optimiser do the work for you in minutes.
Flow consistency
With the IFO the flow is consistent throughout the life of the cylinder to save you even more gas.
Flow control
The built-in regulator, quick connect gas outlet, and Integra® Flow Optimiser eliminate set-up time and stop gas waste.
Surge protection
The Integra® valve reduces pre-weld surge to save gas and ensure a consistent flow.
Connectivity
Use the Integra® e² app to remotely check gas type, contents, consumption history, and remaining arc time.
Improved safety
Integra® Cylinders are smaller, lighter, and easier to handle than traditional cylinders.
Leak detection
Leak tests are performed at the touch of a button, ensuring you don’t waste gas.
Information
The gauge shows how much gas is left, even when the cylinder is not in use. Features include an electronic indicator and alarm.
- Safety locking and release
- Flame arrestor
- Non-return valve
- Thermal cut-off valve
- Dust filter
Independently safety tested to exceed EN ISO 11117.
The quick connector enables you to pre-select the optimum gas for rate and attach directly to your welding hose before snapping on to the quick-connect gas outlet.
Order online
Prices exclude rental, delivery and collection options – more information
Ferromaxx® 7
Weight: 65.64 KG
Height: 1.08m
Process: MIG / MAG
Regulation: ISO14175:M24
Ferromaxx® 15
Weight: 65.64 KG
Height: 1.08m
Process: MIG / MAG
Regulation: ISO14175:M24
Inomaxx® 2
Weight: 65.64 KG
Height: 1.08m
Process: MIG / TIG
Regulation: ISO14175:M12
Inomaxx® TIG
Weight: 65.64 KG
Height: 1.08m
Process: TIG
Regulation: ISO14175:R1
Argon Technical
Weight: 65.64 KG
Height: 1.08m
Process: MIG/TIG
Regulation: ISO14175
M21ArC20
Weight: 66.25 KG
Height: 1.08m
Process: MIG / MAG
Regulation: ISO14175:M21
M26ArCO20/2
Weight: 61.3 KG
Height: 1.08m
Process: MIG / MAG
Regulation: ISO14175:M26
Oxygen Industrial
Weight: 61.64 KG
Height: 1.08m
Process: Cutting
Acetylene Industrial
Weight: 60 KG
Height: 1.05m
Process: Cutting
Welding Gases Range
Whether you are MIG, MAG or TIG welding carbon steel, stainless steel or aluminium we have a welding gas in the Integra® e2 cylinder for you.
| MIG/MAG | TIG/PLASMA | ||||||||
| Carbon Steel |
Stainless Steel |
Aluminium & Alloys | Carbon Steel |
Stainless Steel |
Aluminium & Alloys | ||||
| Solid Wire |
Cored Wire |
Solid Wire |
Cored Wire |
||||||
| Ferromaxx® Plus The best gas mixture for faster, cleaner MAG welding of carbon steel. |
● | ● | ● 1 | ||||||
| Ferromaxx® 15 The reliable all-rounder for carbon steel MAG welding. |
● | ||||||||
| Ferromaxx® 7 The thin and medium carbon steel MAG welding specialist. |
● | ||||||||
| Inomaxx® Plus The best gas mixture for MAG welding stainless steel. |
● | ● 2 | |||||||
| Inomaxx® 2 The reliable gas mixture for MAG welding thin and medium thicknesses stainless steel. |
● | ||||||||
| Inomaxx® TIG* The best gas mixture for TIG welding austenitic stainless steel. |
● 3 | ||||||||
| Alumaxx® Plus The best gas mixture for MIG and TIG welding of aluminium. |
● | ● | ● | ● | |||||
| MIG/MAG | TIG/PLASMA | ||||||||
| Carbon Steel |
Stainless Steel |
Aluminium & Alloys | Carbon Steel |
Stainless Steel |
Aluminium & Alloys | ||||
| Solid Wire |
Cored Wire |
Solid Wire |
Cored Wire |
||||||
| M21 ArC20 (20% CO2 in Argon) Standard gas mixture for MAG welding carbon steel. |
● | ● | ● | ||||||
| M26ArC020/2 (20% C02, 2% Oxygen in Argon) Suitable for Carbon Steel, solid wire. |
● | ||||||||
| Argon Technical Standard gas for MIG and TIG welding. |
● | ● | ● | ● | ● | ||||
| Oxygen and acetylene For cutting, welding and brazing. |
|||||||||
All shielding gases meet or exceed the requirements of ISO 14175.
(1) Flux cored wires (slag forming) (2) Metal cored wires
(3) Austenitic stainless steels only (eg. 300 series)
How Integra®
Cylinders
benefit
your business.
The Integra® range of cylinders is unique. It makes welding more productive, efficient and sustainable, with a host of innovative features providing practical bene
Latest news
Test results Integra® e2 Cylinder at Overlasko Konstruktie
An extensive test series at Overlasko Konstruktie has shown that switching to the Integra® e2 Cylinder from Air Products delivers gas savings of 18-20%.
"We highlighted concerns about handling heavy welding gas cylinders – Air Products listened and acted."
Read how switching to Integra® cylinders helped Allied Vehicles reduce safety risks as well as production downtime.
Book your free demonstration.
Find out how the Integra® cylinders can help you work better and weld better.
Please complete the form to request a FREE on-site demonstration by one of our qualified welding specialists or alternatively call us on 0808 164 8512.
Download our brochure.
Integra® Cylinders Brochure
